Planetary Gear Reducer with Flange Output

Flange Output Reducer

• Features: Direct rigid connection to loads via a flange, eliminating the need for couplings and ensuring high concentricity. Integrated gearbox and internal ring gear: compact, high-precision, large output torque. Input-motor connection: collet locking (after dynamic balance) ensures pitch circle concentricity and backlash-free transmission at high speeds.
• Material Introduction: Gears are made of chromium-molybdenum alloy steel. After quenching and tempering (core hardness 25HRC), they undergo gas nitriding, achieving a surface hardness of 600HV, with excellent wear resistance and impact toughness.
• Advantages: High installation precision, minimal vibration, suitable for high-accuracy transmission.
• Applications: Servo presses, precision rotary tables, medical equipment positioning mechanisms.

Heavy Machine Tool Industry: Reducers are required to bear large axial and radial loads. Thanks to its structural features and high-strength materials, the flange output reducer can meet this demand, allowing the tilting moment to be 2-4 times larger than that of standard-design reducers of the same specification, which can effectively resist lateral forces.

Photovoltaic Tracking System: In photovoltaic power generation systems, photovoltaic tracking systems are often used to improve photoelectric conversion efficiency by enabling solar panels to follow the angle of sunlight. The flange output reducer can be installed on the column, and its output surface is fixedly connected to the driving plate of the tracker through bolts, transmitting the torsional force of the motor to the tracker rotor to drive the solar panel to rotate, thus realizing the tracking of sunlight.

One Of The Best Rack and Pinion Manufacturers In China

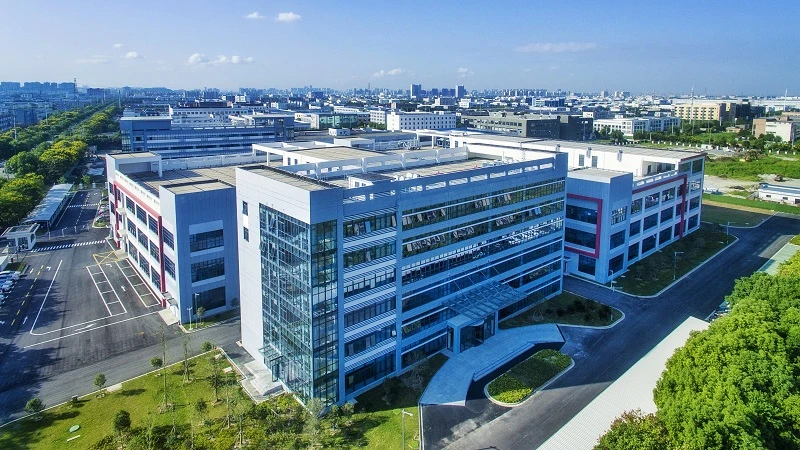

Kunshan Devotec Automation Co., Ltd. was established in 2012, but its origins trace back to an initial investment by the German company WMH HERION in Qingdao, Shandong Province in 2007. Since then, we have accumulated extensive experience in engineering, manufacturing, and quality control. As a specialist in drive technology, Kunshan Devotec Automation focuses on the production of high-precision gear racks, gears, pinions, gearboxes, linear guideways, and other linear transmission components.
